SEGEN QUICK CHANGE

Tooling Technology's Segen Quick-Change system is engineered to simplify and accelerate fixture and tooling changeovers in manufacturing environments. Built with precision-machined locking mechanisms, it allows operators to swap tooling quickly, repeatably, and with absolute accuracy—without the need for wrenches, bolts, or time-consuming alignments. By reducing setup time, the system keeps production running smoothly while maintaining process consistency and safety. Its robust, modular design adapts to a wide range of applications, from thermoforming tool changeovers, machining, and assembly fixtures to robotic end effectors, making it a versatile solution for manufacturers looking to maximize efficiency and throughput.

HIGH STRENGTH

PD375FHS-copy (1).jpg

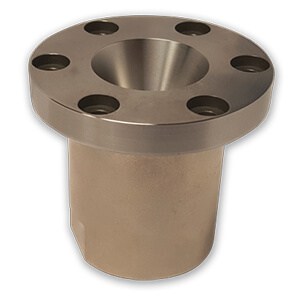

PD375FHS
  • Engineered with a thicker mounting flange to match the strength of the new High-Strength PD375 Knobs.

  • (See specification sheets below for flange dimensions and installation pocket geometry.)

  • Use Grade-8, High-Strength mounting screws when installing this product.

  • Rated up to 10,000 lbs. (static) when used with the High-Strength PD375 Knobs.

  • *Standard PD375 Knobs will not fit with this cylinder lock. Must be used with the High-Strength PD375 Knobs

  • Rated temperature to 450° F

  • Please refer to Specification Sheets below for cylinder dimensions and mounting geometry.

PD375STD8HS
  • .625″ Diameter Pilot

  • 1/2″-13 Stud

  • Cannot be used with the standard cylinder locks

  • Only for use with the new High-Strength PD375FHS High-Strength Cylinder Locks

  • Rated at 10,000 lbs. (static) when used with the PD375FHS High-Strength Cylinder Lock

  • See Specification Sheet below for dimensions

PD375STD5HS
PD375THS
PD375SAHS
PD438STDHS
PD438THS
PD438SAHS
PD438CBHS
PD250STD4HS
PD250THS
PD250SAHS
PD500STDHS
